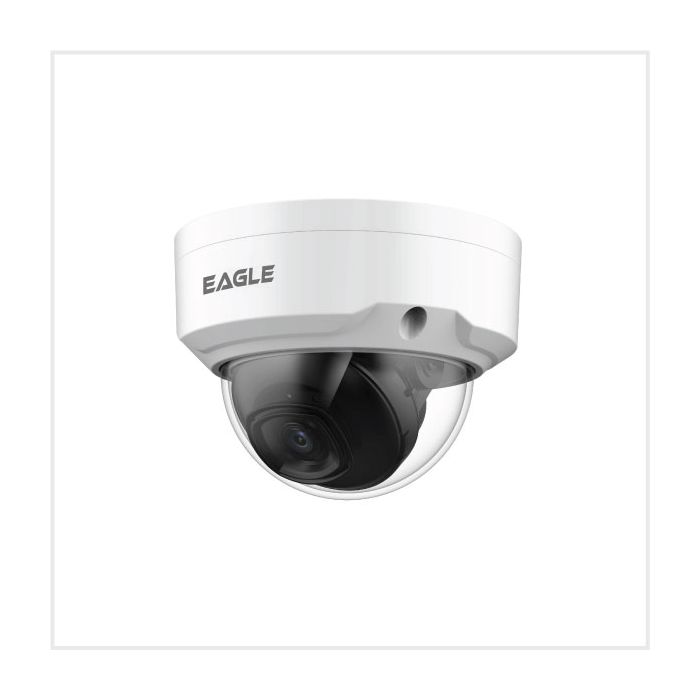

Eagle 5MP IR Fixed Network Vandal Dome Camera
5MP, 1/2.7" CMOS image sensor, low illuminance and high definition images.
Outputs max. 5MP (2880 × 1620) @20 fps, and supports 2688 × 1520 (2688 ×...
- 5MP, 1/2.7" CMOS image sensor, low illuminance and high definition images.
- Outputs max. 5MP (2880 × 1620) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
- H.265 codec, high compression rate, and ultra-low bit rate.
- Built-in IR LED; the max. IR distance is 30 m.
- RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access.
- 12V DC/PoE power supply.
- IP67 and IK10 protection.
Check Lead Times
SKU
EAGLE-IPC-5-VAN-FW
Product Details
| Manufacturer | Eagle |
|---|---|
| Colour | White |
| Camera Body Style | VANDAL |
| Lens Type | Fixed |
| Lens | 2.8mm |
| Effective Pixels | 2880 (H) × 1620 (V) |
| Camera Resolution | 5MP |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | 0.03 Lux@F2.0 (Colour, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Ingress Protection | IP67 |
| Camera Power Supply | 12V DC/PoE (802.3af) |
| Camera Power Consumption | Basic: 1.9W (12V DC); 2.2W (PoE) Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 4.5W (12V DC); 5W (PoE) |
| IR Length | Up to 30m |
| Built-in Audio | No |
| Day / Night | Auto(ICR)/Colour/B/W |
| Working Enviroment | -40 to 60°C |
| Dimensions | 81 × Φ109.9 mm |
| Camera Type | IP |
| Lens Size | 2.8mm |
| Lighting Type | IR |
| Resolution | 5MP |
