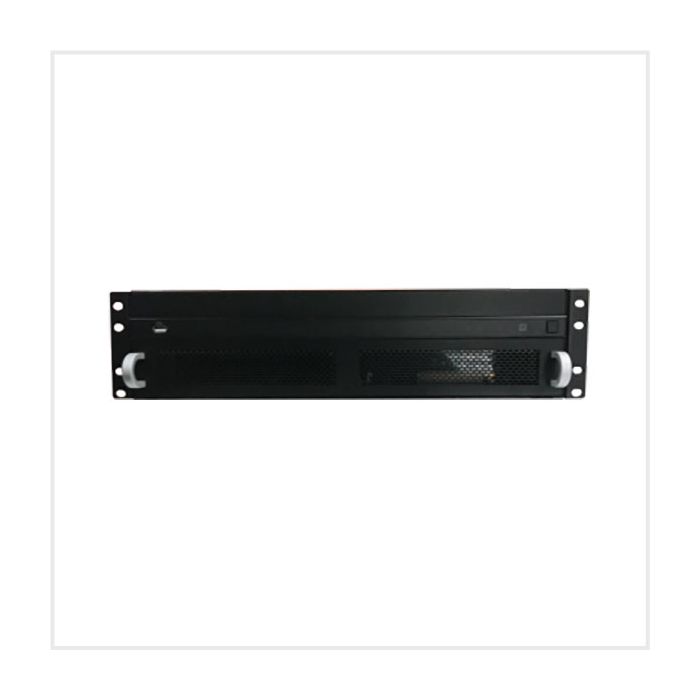

Dahua 2.5U Embedded Multi-screen Controller
19” standard 2.5U ATCA industry box
High speed passive rear panel design, reliable and stable
Easy and flexible configuration with pluggable card mo...
- 19” standard 2.5U ATCA industry box
- High speed passive rear panel design, reliable and stable
- Easy and flexible configuration with pluggable card module design
Contact
353 1908 9027
for availability
SKU
DSCON3000-M
Click to copy
✔ Copied!
Product Details
Dahua introduces the 2.5U Embedded Multi-Screen Controller. Supports max 32 screens splicing and 3 additional outputs. 16ch 1080P@25fps or 64ch D1@25fps signal decoding in main control board and 5ch 1080P@25fps or 16ch D1@25fps signal decoding in output cards (using the decoding capability of main control board). Provides low latency solution and excellent performance of synchronisation. Redundant power optional and smart temperature controlled fan. Powerful main control chip inside, ultrahigh data processing capacity and good extensibility. Supports analog/digital video signals input and matrix output. Supports collection of 4K local signal via HDMI interface to achieve the high-definition display. 2 RJ-45 gigabit network ports for matrix control, preview. Remote reboot/upgrade/default setting and etc operations.
| Manufacturer | Dahua |
|---|---|
| Control Type | Audio & Video Matrix |
