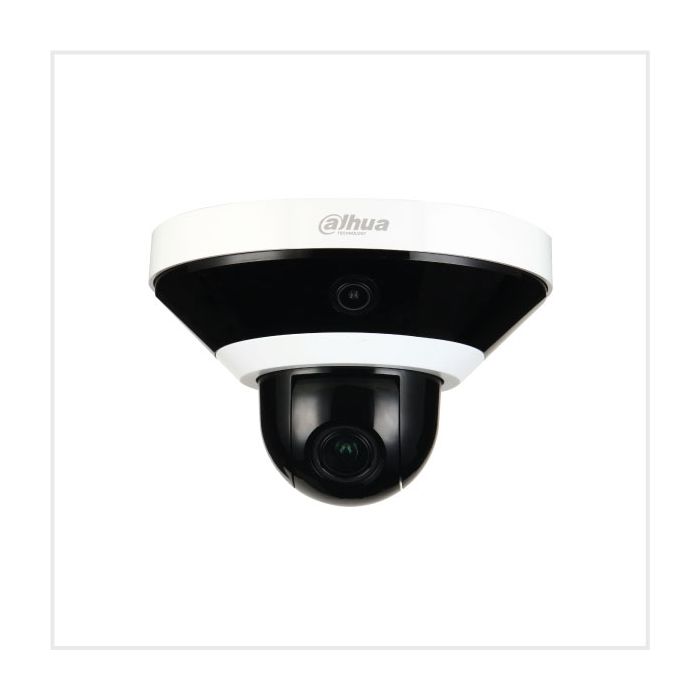

Dahua 3x2MP Multi-Sensor Network Camera + PTZ Camera, PAL
Available To Order
Product Details
The Dahua PSDW5631SP-B360 Panoramic Multi-Sensor plus PTZ camera combines three (3) 2MP sensors working in tandem and a high-speed PTZ camera to create a comprehensive 360° view. With its all-in-one design, the camera provides a 360° panorama and provides region of interest details at the same time. In addition, the PSDW5631SP-B360 offers the Intelligent Video System (IVS), a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection. The PSDW5631SP-B360 camera can replace multiple single-sensor cameras providing a higher return on investment.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | PTZ |
| Camera Resolution | 6MP |
| Lens | 2.7-13.5mm |
| Lens Type | Fixed |
| Camera Power Consumption | DC12V:7.2W 14.8W(IR + PTZ + Zoom) PoE:7.4W 16.1W(IR+ PTZ + Zoom) |
| Camera Power Supply | DC12V(±30%), PoE(802.3at)(Class 4) |
| Image Sensor | Three 1/2.7” 2 Megapixel CMOS |
| Effective Pixels | 3 x 1920 (H) x 1080 (V) |
| Minimum Illumination | 0.03Lux/F2.2( Color,1/3s,30IRE) 0.2Lux/F2.2( Color,1/30s,30IRE) 0.03Lux/F2.2( B/W,1/3s,30IRE) 0.2Lux/F2.2( B/W,1/30s,30IRE) |
| Day / Night | Auto(ICR) / Colour / B/W |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Working Enviroment | -10 to +50°C / Less than 95% RH |
| Dimensions | Φ172 × 123.4mm |
| Max IR Length | 15m |
| Camera Type | IP |
| Lighting Type | IR |
| Lens Size | 2.7-13.5mm |
| Built-in Audio | 1 AUDIO INPUT |
| IR Length | Up to 15m |
