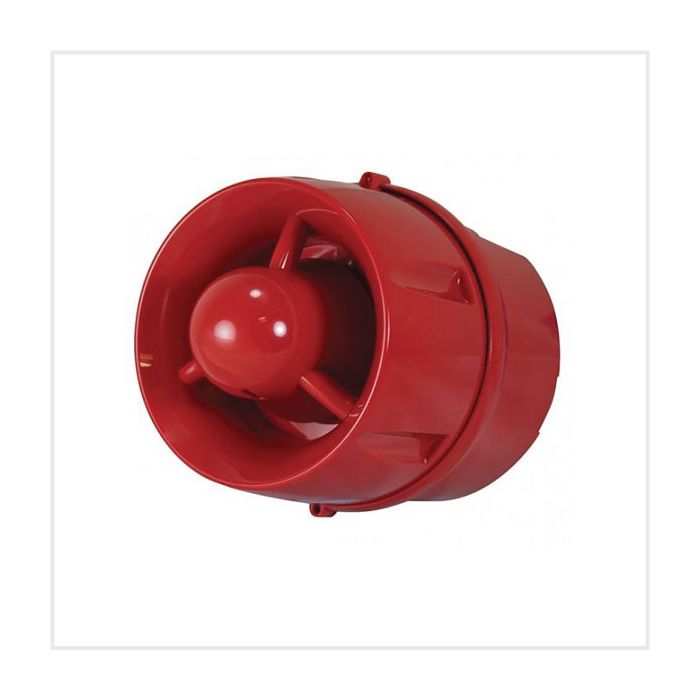

C-TEC ActiV Conventional Hi-Output Wall Sounder (Deep Base)
Approvals/certifications: Certified to EN54-3 by the LPCB & VdS
Protocol/compatibility: Compatible with C-TEC's CFP, FP, MFP and EP203 conventional...
- Approvals/certifications: Certified to EN54-3 by the LPCB & VdS
- Protocol/compatibility: Compatible with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels
- Application/operation: Designed to be wall mounted. Weatherproof to IP55C
- Supply/operating voltage: 18 to 30V DC
- Nominal SPL (Sound Pressure Level): 100dB(A)
- Alarm current: At 30Vdc: 5.5mA; At 18Vdc: 3.8mA
- Product dimensions (mm): 114 x 132
- IP Rating: IP55C (Weatherproof)
- Weight: 315g
- Operating conditions/temperature: -10 to 55ºC
In Stock
SKU
BF430C/CC/DR
Product Details
- Third-party certified to EN54-3 (Sounders).
- Impressive 100dB(A) sound output @ 1m.
- Includes 31 selectable primary tones and an optional secondary tone.
- Two volume levels (high and low)
- Alarm Current at 30Vdc = 5.5mA.
- Alarm Current at 18Vdc = 3.8mA.
- IP33C rated.
- Manufactured in the UK by C-TEC.
| Manufacturer | C-Tec |
|---|
