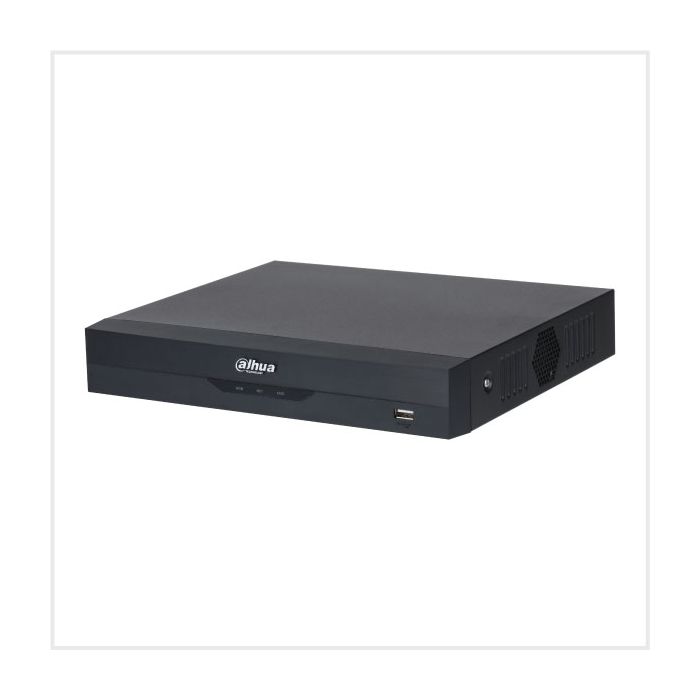

Dahua Compact DVR
H.265+/H.265 dual-stream video compression.
Supports Full-channel AI Coding.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 16 channels IP came...
- H.265+/H.265 dual-stream video compression.
- Supports Full-channel AI Coding.
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
- Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.
- Up to 8 channels video stream (analogue channel) Perimeter Protection.
- Up to 8 channels video stream (analogue channel) SMD Plus.
- Up to 2 channels video stream (analogue channel) human face recognition.
- IoT & POS functionalities.
Check Lead Times
SKU
DH-XVR5108HS-4KL-I3
You may also like...
Product Details
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring max. full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
| Manufacturer | Dahua |
|---|---|
| Camera Type | Analogue |
| Colour | Black |
| Channels | 8CH |
| HDD/SATA Ports | 1 |
| Recorder Resolution | 4KL |
| Case Size | 1U |
| Video Input | Up to 16 channels of IPC access 8 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the exist |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Encode | Main stream: All channel 4K@(1-7 fps); 6MP@ (1-10 fps); 5MP@ (1-12 fps); 4K-N/4 MP/3 MP@ (1-15 fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub stream: 960H@ (1 fps–15 fps); D1/CIF@ (1 fps–25/30 fps) |
| Onvif | 21.06 |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Audio Input | 1, RCA (external) 8, BNC (coaxial) |
| Audio Output | 1, RCA |
| Audio Compression | G.711A/G.711u/PCM |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| Power Supply | DC12V, 2A |
| Dimensions | Compact 1U, 260.0 × 237.9 × 47.6 mm (W × D × H) |
